Model：33021
Old Model：
Type：Tapered Roller Bearing
d：105
D：160
B：43.0
TEL：86-13400023945

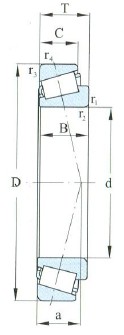

| Dimansion mm | |
| d | 105 |
| D | 160 |
| T | 43.00 |
| B | 43.0 |
| C | 34.0 |
| r 1,2 min | 2.5 |
| r 3,4 min | 2.0 |
| Load ratings kN | |
| Cr | 226.0 |
| Cor | 385.0 |
| Designation | |
| Designation | 33021 |
| Weight(Kg) | |
| Weight(Kg) | 3.0500 |
| Limiting Speed r/min | |
| Grease | 1900 |
| Oil | 2800 |

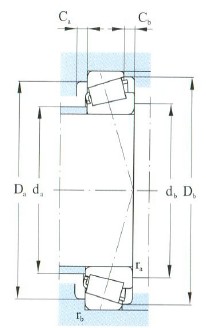

| Fitting dimansion mm | |
| d a max | 117.0 |
| d b max | 115 |
| D a max | 150 |
| D a min | 145 |
| D b min | 153.0 |
| C a min | 7 |
| C b min | 9.0 |
| r a max | 2.0 |
| r b max | 2.0 |
| Calculation coefficient | |
| e | 0.28 |
| Y | 2.10 |
| Yo | 1.100 |
| a mm | |
| a | 31 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 2DE |
Chenxin International Industry Co., Ltdspecializes in selling 33021-Tapered Roller Bearing，Relevant information of -33021-Tapered Roller Bearing includes： Designation: 33021 d:105 D:160 B:43.0 Type:Tapered Roller Bearing ，Want to know more about 33021-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
33021-Tapered Roller Bearing is widely used.33021-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 33021-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
