Model：32218
Old Model：
Type：Tapered Roller Bearing
d：
D：160
B：40.0
TEL：86-13400023945

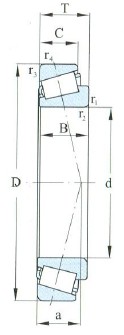

| Dimansion mm | |
| d | |
| D | 160 |
| T | 42.50 |
| B | 40.0 |
| C | 34.0 |
| r 1,2 min | 2.5 |
| r 3,4 min | 2.0 |
| Load ratings kN | |
| Cr | 257 |
| Cor | 374 |
| Designation | |
| Designation | 32218 |
| Weight(Kg) | |
| Weight(Kg) | 3.5200 |
| Limiting Speed r/min | |
| Grease | 2000 |
| Oil | 3000 |

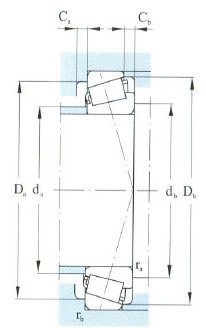

| Fitting dimansion mm | |
| d a max | 102.0 |
| d b max | 100 |
| D a max | 150 |
| D a min | 138 |
| D b min | 152.0 |
| C a min | 5 |
| C b min | 8.5 |
| r a max | 2.0 |
| r b max | 2.0 |
| Calculation coefficient | |
| e | 0.43 |
| Y | 1.40 |
| Yo | 0.800 |
| a mm | |
| a | 37 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 3FC |
Chenxin International Industry Co., Ltdspecializes in selling 32218-Tapered Roller Bearing，Relevant information of -32218-Tapered Roller Bearing includes： Designation: 32218 d: D:160 B:40.0 Type:Tapered Roller Bearing ，Want to know more about 32218-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
32218-Tapered Roller Bearing is widely used.32218-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 32218-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
