Model：31313
Old Model：
Type：Tapered Roller Bearing
d：
D：140
B：33.0
TEL：86-13400023945

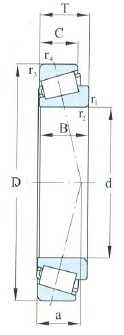

| Dimansion mm | |
| d | |
| D | 140 |
| T | 36.00 |
| B | 33.0 |
| C | 23.0 |
| r 1,2 min | 3.0 |
| r 3,4 min | 2.5 |
| Load ratings kN | |
| Cr | 161 |
| Cor | 194 |
| Designation | |
| Designation | 31313 |
| Weight(Kg) | |
| Weight(Kg) | 2.3500 |
| Limiting Speed r/min | |
| Grease | 2200 |
| Oil | 3200 |

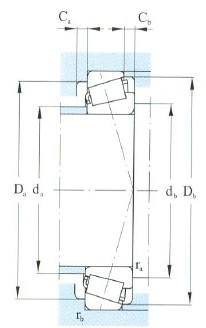

| Fitting dimansion mm | |
| d a max | 80.0 |
| d b max | 77 |
| D a max | 128 |
| D a min | 111 |
| D b min | 132.0 |
| C a min | 5 |
| C b min | 13.0 |
| r a max | 2.0 |
| r b max | 2.0 |
| Calculation coefficient | |
| e | 0.83 |
| Y | 0.72 |
| Yo | 0.400 |
| a mm | |
| a | 44 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 7GB |
Chenxin International Industry Co., Ltdspecializes in selling 31313-Tapered Roller Bearing，Relevant information of -31313-Tapered Roller Bearing includes： Designation: 31313 d: D:140 B:33.0 Type:Tapered Roller Bearing ，Want to know more about 31313-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
31313-Tapered Roller Bearing is widely used.31313-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 31313-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
