Model：3381/3320
Old Model：
Type：Tapered Roller Bearing
d：38.100
D：80.167
B：30.391
TEL：86-13400023945

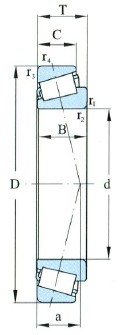

| Dimansion mm | |
| d | 38.100 |
| D | 80.167 |
| T | 29.370 |
| B | 30.391 |
| C | 23.812 |
| r 1,2 min | 3.5 |
| r 3,4 min | 3.3 |
| Load ratings kN | |
| Cr | 94.3 |
| Cor | 118 |
| Weight(Kg) | |
| Weight(Kg) | 0.6650 |
| Limiting Speed r/min | |
| Grease | 4800 |
| Oil | 6400 |

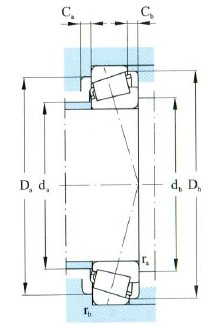

| Fitting dimansion mm | |
| d a max | 44.5 |
| d b max | 51.0 |
| D a max | 70.0 |
| D a min | 69.0 |
| D b min | 75.0 |
| C a min | 5.0 |
| C b min | 6.0 |
| r a max | 3.5 |
| r b max | 3.3 |
| Calculation coefficient | |
| e | 0.27 |
| Y | 2.20 |
| Yo | 1.21 |
| a mm | |
| a | 18 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | 3381/3320 |
Chenxin International Industry Co., Ltdspecializes in selling 3381/3320-Tapered Roller Bearing，Relevant information of -3381/3320-Tapered Roller Bearing includes： Designation: 3381/3320 d:38.100 D:80.167 B:30.391 Type:Tapered Roller Bearing ，Want to know more about 3381/3320-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
3381/3320-Tapered Roller Bearing is widely used.3381/3320-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 3381/3320-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
