Model：32012X
Old Model：
Type：Tapered Roller Bearing
d：60
D：95
B：23.0
TEL：86-13400023945

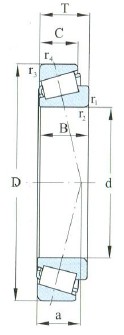

| Dimansion mm | |
| d | 60 |
| D | 95 |
| T | 23.00 |
| B | 23.0 |
| C | 17.5 |
| r 1,2 min | 1.5 |
| r 3,4 min | 1.5 |
| Load ratings kN | |
| Cr | 79.6 |
| Cor | 115 |
| Designation | |
| Designation | 32012X |
| Weight(Kg) | |
| Weight(Kg) | 0.5910 |
| Limiting Speed r/min | |
| Grease | 3800 |
| Oil | 5000 |

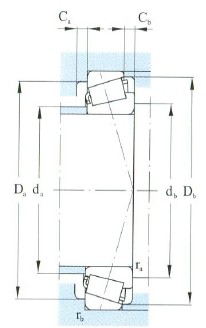

| Fitting dimansion mm | |
| d a max | 67.0 |
| d b max | 67 |
| D a max | 88 |
| D a min | 85 |
| D b min | 91.0 |
| C a min | 4 |
| C b min | 5.0 |
| r a max | 1.0 |
| r b max | 1.0 |
| Calculation coefficient | |
| e | 0.43 |
| Y | 1.40 |
| Yo | 0.800 |
| a mm | |
| a | 20 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 4CC |
Chenxin International Industry Co., Ltdspecializes in selling 32012X-Tapered Roller Bearing，Relevant information of -32012X-Tapered Roller Bearing includes： Designation: 32012X d:60 D:95 B:23.0 Type:Tapered Roller Bearing ，Want to know more about 32012X-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
32012X-Tapered Roller Bearing is widely used.32012X-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 32012X-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
