Model：14138A/14276
Old Model：
Type：Tapered Roller Bearing
d：
D：69.012
B：19.583
TEL：86-13400023945

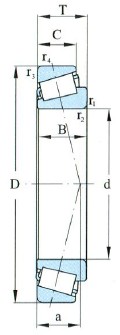

| Dimansion mm | |
| d | |
| D | 69.012 |
| T | 19.845 |
| B | 19.583 |
| C | 15.875 |
| r 1,2 min | 3.5 |
| r 3,4 min | 1.3 |
| Load ratings kN | |
| Cr | 48.2 |
| Cor | 56.2 |
| Weight(Kg) | |
| Weight(Kg) | 0.3300 |
| Limiting Speed r/min | |
| Grease | 5600 |
| Oil | 7500 |

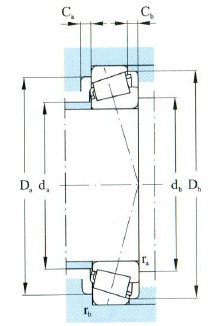

| Fitting dimansion mm | |
| d a max | 43.0 |
| d b max | 46.5 |
| D a max | 61.5 |
| D a min | 57.0 |
| D b min | 63.0 |
| C a min | 3.0 |
| C b min | 3.5 |
| r a max | 3.0 |
| r b max | 1.0 |
| Calculation coefficient | |
| e | 0.37 |
| Y | 1.60 |
| Yo | 0.90 |
| a mm | |
| a | 15 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | 14138A/14276 |
Chenxin International Industry Co., Ltdspecializes in selling 14138A/14276-Tapered Roller Bearing，Relevant information of -14138A/14276-Tapered Roller Bearing includes： Designation: 14138A/14276 d: D:69.012 B:19.583 Type:Tapered Roller Bearing ，Want to know more about 14138A/14276-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
14138A/14276-Tapered Roller Bearing is widely used.14138A/14276-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 14138A/14276-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
