Model：32909
Old Model：
Type：Tapered Roller Bearing
d：45
D：68
B：15.0
TEL：86-13400023945

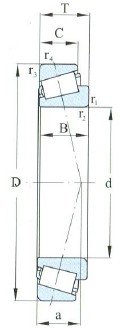

| Dimansion mm | |
| d | 45 |
| D | 68 |
| T | 15.00 |
| B | 15.0 |
| C | 12.0 |
| r 1,2 min | 0.6 |
| r 3,4 min | 0.6 |
| Load ratings kN | |
| Cr | 34.5 |
| Cor | 50.5 |
| Designation | |
| Designation | 32909 |
| Weight(Kg) | |
| Weight(Kg) | 0.1870 |
| Limiting Speed r/min | |
| Grease | 5000 |
| Oil | 6700 |
| Fitting dimansion mm | |
| d a max | 50.0 |
| d b max | 53 |
| D a max | 63 |
| D a min | 62 |
| D b min | 65.0 |
| C a min | 3 |
| C b min | 3.0 |
| r a max | 0.6 |
| r b max | 0.6 |
| Calculation coefficient | |
| e | 0.32 |
| Y | 1.90 |
| Yo | 1.000 |
| a mm | |
| a | 12 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 2BC |
Chenxin International Industry Co., Ltdspecializes in selling 32909-Tapered Roller Bearing，Relevant information of -32909-Tapered Roller Bearing includes： Designation: 32909 d:45 D:68 B:15.0 Type:Tapered Roller Bearing ，Want to know more about 32909-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
32909-Tapered Roller Bearing is widely used.32909-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 32909-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
