Model：2582/2523
Old Model：
Type：Tapered Roller Bearing
d：
D：69.850
B：25.357
TEL：86-13400023945

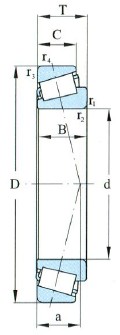

| Dimansion mm | |
| d | |
| D | 69.850 |
| T | 23.812 |
| B | 25.357 |
| C | 19.050 |
| r 1,2 min | 3.5 |
| r 3,4 min | 1.3 |
| Load ratings kN | |
| Cr | 69.3 |
| Cor | 81.5 |
| Weight(Kg) | |
| Weight(Kg) | 0.4510 |
| Limiting Speed r/min | |
| Grease | 5600 |
| Oil | 7500 |

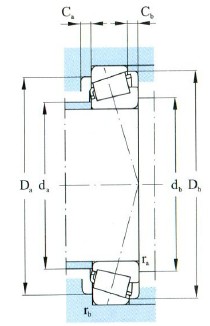

| Fitting dimansion mm | |
| d a max | 37.5 |
| d b max | 44.0 |
| D a max | 61.0 |
| D a min | 60.0 |
| D b min | 64.0 |
| C a min | 4.5 |
| C b min | 5.0 |
| r a max | 3.5 |
| r b max | 1.3 |
| Calculation coefficient | |
| e | 0.27 |
| Y | 2.19 |
| Yo | 1.21 |
| a mm | |
| a | 17 |
| Designation Assembles/Outer Ring | |
| Designation Assembles/Outer Ring | 2582/2523 |
Chenxin International Industry Co., Ltdspecializes in selling 2582/2523-Tapered Roller Bearing，Relevant information of -2582/2523-Tapered Roller Bearing includes： Designation: 2582/2523 d: D:69.850 B:25.357 Type:Tapered Roller Bearing ，Want to know more about 2582/2523-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
2582/2523-Tapered Roller Bearing is widely used.2582/2523-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 2582/2523-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
