Model：32907
Old Model：
Type：Tapered Roller Bearing
d：35
D：55
B：14.0
TEL：86-13400023945

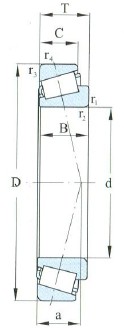

| Dimansion mm | |
| d | 35 |
| D | 55 |
| T | 14.00 |
| B | 14.0 |
| C | 11.5 |
| r 1,2 min | 0.6 |
| r 3,4 min | 0.6 |
| Load ratings kN | |
| Cr | 27.4 |
| Cor | 39.0 |
| Designation | |
| Designation | 32907 |
| Weight(Kg) | |
| Weight(Kg) | 0.1230 |
| Limiting Speed r/min | |
| Grease | 6300 |
| Oil | 8500 |

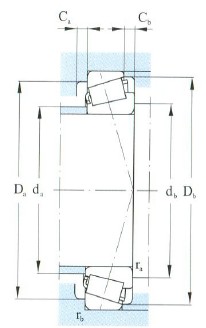

| Fitting dimansion mm | |
| d a max | 43.0 |
| d b max | 40 |
| D a max | 50 |
| D a min | 50 |
| D b min | 53.0 |
| C a min | 3 |
| C b min | 2.5 |
| r a max | 0.6 |
| r b max | 0.6 |
| Calculation coefficient | |
| e | 0.29 |
| Y | 2.10 |
| Yo | 1.100 |
| a mm | |
| a | 11 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 2BD |
Chenxin International Industry Co., Ltdspecializes in selling 32907-Tapered Roller Bearing，Relevant information of -32907-Tapered Roller Bearing includes： Designation: 32907 d:35 D:55 B:14.0 Type:Tapered Roller Bearing ，Want to know more about 32907-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
32907-Tapered Roller Bearing is widely used.32907-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 32907-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
