Model：32304
Old Model：
Type：Tapered Roller Bearing
d：20
D：52
B：21.0
TEL：86-13400023945

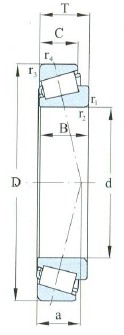

| Dimansion mm | |
| d | 20 |
| D | 52 |
| T | 22.25 |
| B | 21.0 |
| C | 18.0 |
| r 1,2 min | 1.5 |
| r 3,4 min | 1.5 |
| Load ratings kN | |
| Cr | 44.8 |
| Cor | 44.9 |
| Designation | |
| Designation | 32304 |
| Weight(Kg) | |
| Weight(Kg) | 0.2330 |
| Limiting Speed r/min | |
| Grease | 7500 |
| Oil | 10000 |

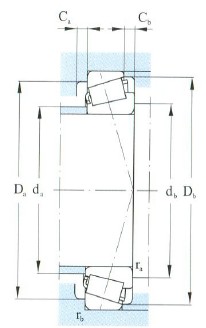

| Fitting dimansion mm | |
| d a max | 27.0 |
| d b max | 27 |
| D a max | 45 |
| D a min | 43 |
| D b min | 47.0 |
| C a min | 2 |
| C b min | 3.0 |
| r a max | 1.0 |
| r b max | 1.0 |
| Calculation coefficient | |
| e | 0.30 |
| Y | 2.00 |
| Yo | 1.100 |
| a mm | |
| a | 14 |
| ISO355 Dimensions | |
| ISO355 Dimensions | 2FD |
Chenxin International Industry Co., Ltdspecializes in selling 32304-Tapered Roller Bearing，Relevant information of -32304-Tapered Roller Bearing includes： Designation: 32304 d:20 D:52 B:21.0 Type:Tapered Roller Bearing ，Want to know more about 32304-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
32304-Tapered Roller Bearing is widely used.32304-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 32304-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
