Model：*241/500ECAK30/W33
Old Model：
Type：Spherical Roller Bearing
d：480
D：830
B：325
TEL：86-13400023945
| Principal dimensions mm | |
| d 1 | 480 |
| D | 830 |
| B | 325 |
| Basic load ratings KN | |
| dyc Cr | 9800 |
| stc Cor | 17000 |
| Speed ratings rpm | |
| Speed Ratings | 320 |
| Limiting Speed | 600 |
| Designation | |
| Bearing | *241/500ECAK30/W33 |
| Withdrawal sleeves | AOH241/500 |

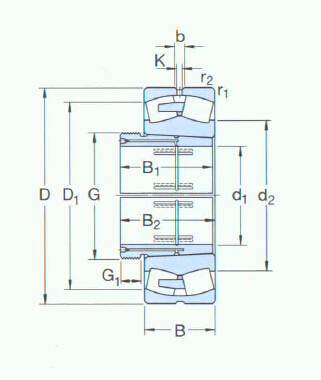

| Dimansion mm | |
| d 1 | 480 |
| d 2 ～ | 589 |
| D1 ～ | 713 |
| B 1 | 360 |
| B 2 1) | 383 |
| G | Tr530×6 |
| G 1 | 35 |
| b | 22.3 |
| k | 12 |
| r 1,2 Min | 7.5 |
| Abutment and fillet dimensions mm | |
| d a Max | 532 |
| Da Max | 798 |
| r a Max | 6 |
| Calculation coefficient | |
| e | 0.37 |
| Y1 | 1.8 |
| Y2 | 2.7 |
| Yo | 1.8 |
| Pu | |
| Pu | 1120 |
| WeightBearing+Adapter Sleeve | |
| Bearing+ Withdrawal sleeves | 735 |
Chenxin International Industry Co., Ltdspecializes in selling *241/500ECAK30/W33-Spherical Roller Bearing，Relevant information of -*241/500ECAK30/W33-Spherical Roller Bearing includes： Designation: *241/500ECAK30/W33 d:480 D:830 B:325 Type:Spherical Roller Bearing ，Want to know more about *241/500ECAK30/W33-Spherical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
*241/500ECAK30/W33-Spherical Roller Bearing is widely used.*241/500ECAK30/W33-Spherical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of *241/500ECAK30/W33-Spherical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
