Model：71918CTA/DF
Old Model：
Type：Angular Contact Ball Bearing
d：90
D：125
B：18
TEL：86-13400023945

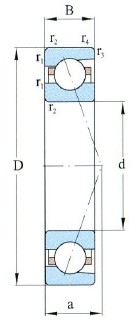

| Principal dimensions (mm) | |
| d | 90 |
| D | 125 |
| B | 18 |
| r 1,2 min | 1.1 |
| r 3,4 min | 0.60 |
| Load ratings (kN) | |
| Cr | 40.70 |
| Cor | 44.00 |
| Limiting Speed (r/min) | |
| Grease | 9500 |
| Oil | 16000 |
| Designation | |
| DB | 71918CTA/DB |
| DF | 71918CTA/DF |
| DT | 71918CTA/DT |
| Designation | 71918CTA |
| Fitting dimansion mm | |
| d a min | 97.0 |
| D a max | 118.0 |
| D b max | 120.0 |
| r a max | 1.0 |
| r b max | 0.60 |
| Basic load ratings Combinaton (kn) | |
| Cr | 66.10 |
| Cor | 88.00 |
| Speed ratings Combination (r/min) | |
| Grease | 7600 |
| Oil | 12500 |
| a (mm) | |
| a (mm) | 23.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 0.555 |
Chenxin International Industry Co., Ltdspecializes in selling 71918CTA/DF-Angular Contact Ball Bearing，Relevant information of -71918CTA/DF-Angular Contact Ball Bearing includes： Designation: 71918CTA/DF d:90 D:125 B:18 Type:Angular Contact Ball Bearing ，Want to know more about 71918CTA/DF-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
71918CTA/DF-Angular Contact Ball Bearing is widely used.71918CTA/DF-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 71918CTA/DF-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
