Model：7011CTA/DB
Old Model：
Type：Angular Contact Ball Bearing
d：55
D：90
B：18
TEL：86-13400023945

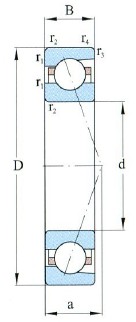

| Principal dimensions (mm) | |
| d | 55 |
| D | 90 |
| B | 18 |
| r 1,2 min | 1.1 |
| r 3,4 min | 0.60 |
| Load ratings (kN) | |
| Cr | 33.30 |
| Cor | 28.30 |
| Limiting Speed (r/min) | |
| Grease | 15000 |
| Oil | 24000 |
| Designation | |
| DB | 7011CTA/DB |
| DF | 7011CTA/DF |
| DT | 7011CTA/DT |
| Designation | 7011CTA |
| Fitting dimansion mm | |
| d a min | 62.0 |
| D a max | 83.0 |
| D b max | 86.0 |
| r a max | 1.0 |
| r b max | 0.60 |
| Basic load ratings Combinaton (kn) | |
| Cr | 54.10 |
| Cor | 56.60 |
| Speed ratings Combination (r/min) | |
| Grease | 12000 |
| Oil | 19000 |
| a (mm) | |
| a (mm) | 19.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 0.390 |
Chenxin International Industry Co., Ltdspecializes in selling 7011CTA/DB-Angular Contact Ball Bearing，Relevant information of -7011CTA/DB-Angular Contact Ball Bearing includes： Designation: 7011CTA/DB d:55 D:90 B:18 Type:Angular Contact Ball Bearing ，Want to know more about 7011CTA/DB-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
7011CTA/DB-Angular Contact Ball Bearing is widely used.7011CTA/DB-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 7011CTA/DB-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
