Model：71808ACTA/DT
Old Model：
Type：Angular Contact Ball Bearing
d：40
D：52
B：7
TEL：86-13400023945

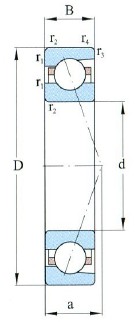

| Principal dimensions (mm) | |
| d | 40 |
| D | 52 |
| B | 7 |
| r 1,2 min | 0.3 |
| r 3,4 min | 0.15 |
| Load ratings (kN) | |
| Cr | 5.79 |
| Cor | 5.40 |
| Limiting Speed (r/min) | |
| Grease | 19000 |
| Oil | 32000 |
| Designation | |
| DB | 71808ACTA/DB |
| DF | 71808ACTA/DF |
| DT | 71808ACTA/DT |
| Designation | 71808ACTA |
| Fitting dimansion mm | |
| d a min | 42.5 |
| D a max | 49.5 |
| D b max | 50.5 |
| r a max | 0.3 |
| r b max | 0.10 |
| Basic load ratings Combinaton (kn) | |
| Cr | 9.41 |
| Cor | 10.80 |
| Speed ratings Combination (r/min) | |
| Grease | 15000 |
| Oil | 25000 |
| a (mm) | |
| a (mm) | 14.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 0.031 |
Chenxin International Industry Co., Ltdspecializes in selling 71808ACTA/DT-Angular Contact Ball Bearing，Relevant information of -71808ACTA/DT-Angular Contact Ball Bearing includes： Designation: 71808ACTA/DT d:40 D:52 B:7 Type:Angular Contact Ball Bearing ，Want to know more about 71808ACTA/DT-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
71808ACTA/DT-Angular Contact Ball Bearing is widely used.71808ACTA/DT-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 71808ACTA/DT-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
