Model：7204CTA
Old Model：
Type：Angular Contact Ball Bearing
d：20
D：47
B：14
TEL：86-13400023945

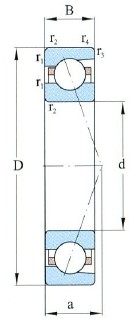

| Principal dimensions (mm) | |
| d | 20 |
| D | 47 |
| B | 14 |
| r 1,2 min | 1.0 |
| r 3,4 min | 0.30 |
| Load ratings (kN) | |
| Cr | 15.60 |
| Cor | 9.01 |
| Limiting Speed (r/min) | |
| Grease | 36000 |
| Oil | 53000 |
| Designation | |
| DB | 7204CTA/DB |
| DF | 7204CTA/DF |
| DT | 7204CTA/DT |
| Designation | 7204CTA |
| Fitting dimansion mm | |
| d a min | 26.0 |
| D a max | 41.0 |
| D b max | 45.0 |
| r a max | 1.0 |
| r b max | 0.30 |
| Basic load ratings Combinaton (kn) | |
| Cr | 25.30 |
| Cor | 18.00 |
| Speed ratings Combination (r/min) | |
| Grease | 28000 |
| Oil | 42000 |
| a (mm) | |
| a (mm) | 12.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 0.102 |
Chenxin International Industry Co., Ltdspecializes in selling 7204CTA-Angular Contact Ball Bearing，Relevant information of -7204CTA-Angular Contact Ball Bearing includes： Designation: 7204CTA d:20 D:47 B:14 Type:Angular Contact Ball Bearing ，Want to know more about 7204CTA-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
7204CTA-Angular Contact Ball Bearing is widely used.7204CTA-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 7204CTA-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
