Model：71876B/DB
Old Model：
Type：Angular Contact Ball Bearing
d：380
D：480
B：92
TEL：86-13400023945

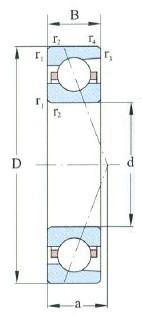

| Principal dimensions (mm) | |
| d | 380 |
| D | 480 |
| B | 92 |
| r 1,2 min | 2.1 |
| r 3,4 min | 1.1 |
| Load ratings (kN) | |
| Cr | |
| Cor | |
| Limiting Speed (r/min) | |
| Grease | |
| Oil | |
| Designation | |
| DB | 71876B/DB |
| DF | |
| DT | |
| Designation | 71876B/DB |

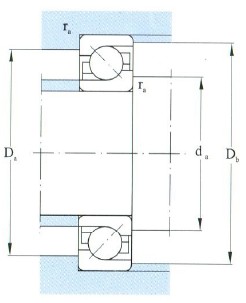

| Fitting dimansion mm | |
| d a min | 392 |
| D a max | 468 |
| D b max | 473 |
| r a max | 2.0 |
| r b max | 1.0 |
| Basic load ratings Combinaton (kn) | |
| Cr | 276.0 |
| Cor | 730.0 |
| Speed ratings Combination (r/min) | |
| Grease | |
| Oil | |
| a (mm) | |
| a (mm) | 601.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 37.2 |
Chenxin International Industry Co., Ltdspecializes in selling 71876B/DB-Angular Contact Ball Bearing，Relevant information of -71876B/DB-Angular Contact Ball Bearing includes： Designation: 71876B/DB d:380 D:480 B:92 Type:Angular Contact Ball Bearing ，Want to know more about 71876B/DB-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
71876B/DB-Angular Contact Ball Bearing is widely used.71876B/DB-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 71876B/DB-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
