Model：7232C/DT
Old Model：
Type：Angular Contact Ball Bearing
d：160
D：290
B：48
TEL：86-13400023945

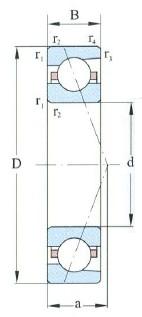

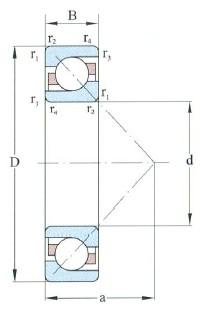

| Principal dimensions (mm) | |
| d | 160 |
| D | 290 |
| B | 48 |
| r 1,2 min | 3.0 |
| r 3,4 min | 1.10 |
| Load ratings (kN) | |
| Cr | 259.0 |
| Cor | 225.0 |
| Limiting Speed (r/min) | |
| Grease | 3600 |
| Oil | 5200 |
| Designation | |
| DB | 7232C/DB |
| DF | 7232C/DF |
| DT | 7232C/DT |
| Designation | 7232C |

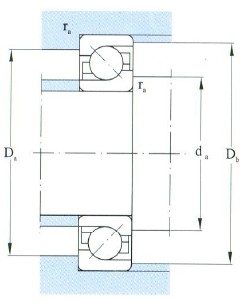

| Fitting dimansion mm | |
| d a min | 174 |
| D a max | 276 |
| D b max | 283.0 |
| r a max | 2.5 |
| r b max | 1.00 |
| Basic load ratings Combinaton (kn) | |
| Cr | 821.0 |
| Cor | 450.0 |
| Speed ratings Combination (r/min) | |
| Grease | 2800 |
| Oil | 4000 |
| a (mm) | |
| a (mm) | 84.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 9.2000 |
Chenxin International Industry Co., Ltdspecializes in selling 7232C/DT-Angular Contact Ball Bearing，Relevant information of -7232C/DT-Angular Contact Ball Bearing includes： Designation: 7232C/DT d:160 D:290 B:48 Type:Angular Contact Ball Bearing ，Want to know more about 7232C/DT-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
7232C/DT-Angular Contact Ball Bearing is widely used.7232C/DT-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 7232C/DT-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
