Model：7319BTN/DB
Old Model：
Type：Angular Contact Ball Bearing
d：95
D：200
B：45
TEL：86-13400023945

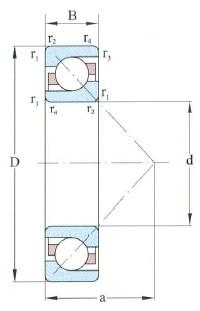

| Principal dimensions (mm) | |
| d | 95 |
| D | 200 |
| B | 45 |
| r 1,2 min | 3.0 |
| r 3,4 min | 1.10 |
| Load ratings (kN) | |
| Cr | 178.0 |
| Cor | 163.0 |
| Limiting Speed (r/min) | |
| Grease | 2600 |
| Oil | 3600 |
| Designation | |
| DB | 7319BTN/DB |
| DF | 7319BTN/DF |
| DT | 7319BTN/DT |
| Designation | 7319BTN |
| Fitting dimansion mm | |
| d a min | 109 |
| D a max | 186 |
| D b max | |
| r a max | 2.5 |
| r b max | |
| Basic load ratings Combinaton (kn) | |
| Cr | 289.0 |
| Cor | 326.0 |
| Speed ratings Combination (r/min) | |
| Grease | 1900 |
| Oil | 2800 |
| a (mm) | |
| a (mm) | 84.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 6.0000 |
Chenxin International Industry Co., Ltdspecializes in selling 7319BTN/DB-Angular Contact Ball Bearing，Relevant information of -7319BTN/DB-Angular Contact Ball Bearing includes： Designation: 7319BTN/DB d:95 D:200 B:45 Type:Angular Contact Ball Bearing ，Want to know more about 7319BTN/DB-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
7319BTN/DB-Angular Contact Ball Bearing is widely used.7319BTN/DB-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 7319BTN/DB-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
