Model：4044DM/W34
Old Model：
Type：Angular Contact Ball Bearing
d：220
D：340
B：118
TEL：86-13400023945

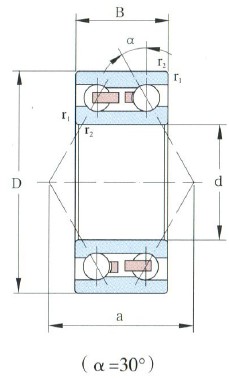

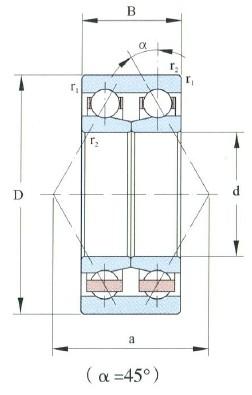

| Principal dimensions (mm) | |
| d | 220 |
| D | 340 |
| B | 118 |
| r 1,2 min | 3 |
| Load ratings (kN) | |
| Cr | 276 |
| Cor | 596 |
| Limiting Speed (r/min) | |
| Grease | 1000 |
| Oil | 1400 |
| Designation | |
| Designation | 4044DM/W34 |

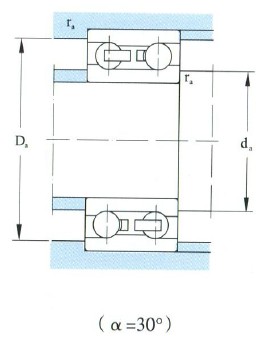

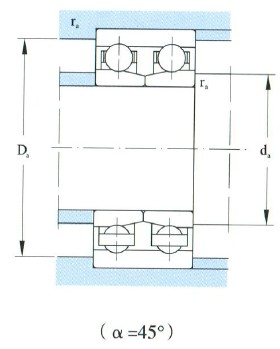

| Fitting dimansion mm | |
| d a max | 234 |
| D a max | 326 |
| r a max | 2.5 |
| a | |
| a | 340.2 |
| Weight(Kg) | |
| Designation | 38.8 |
Chenxin International Industry Co., Ltdspecializes in selling 4044DM/W34-Angular Contact Ball Bearing，Relevant information of -4044DM/W34-Angular Contact Ball Bearing includes： Designation: 4044DM/W34 d:220 D:340 B:118 Type:Angular Contact Ball Bearing ，Want to know more about 4044DM/W34-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
4044DM/W34-Angular Contact Ball Bearing is widely used.4044DM/W34-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 4044DM/W34-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
