Model：3315DYM
Old Model：
Type：Angular Contact Ball Bearing
d：75
D：160
B：68.3
TEL：86-13400023945

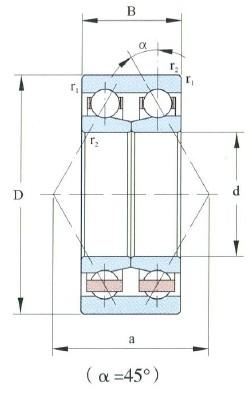

| Principal dimensions (mm) | |
| d | 75 |
| D | 160 |
| B | 68.3 |
| r 1,2 min | 2.1 |
| Load ratings (kN) | |
| Cr | 160 |
| Cor | 197 |
| Limiting Speed (r/min) | |
| Grease | 3000 |
| Oil | 4100 |
| Designation | |
| Designation | 3315DYM |
| Fitting dimansion mm | |
| d a max | 87 |
| D a max | 148 |
| r a max | 2 |
| a | |
| a | 91.8 |
| Weight(Kg) | |
| Designation | 6.82 |
Chenxin International Industry Co., Ltdspecializes in selling 3315DYM-Angular Contact Ball Bearing，Relevant information of -3315DYM-Angular Contact Ball Bearing includes： Designation: 3315DYM d:75 D:160 B:68.3 Type:Angular Contact Ball Bearing ，Want to know more about 3315DYM-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
3315DYM-Angular Contact Ball Bearing is widely used.3315DYM-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 3315DYM-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
