Model：7206BTN
Old Model：
Type：Angular Contact Ball Bearing
d：30
D：62
B：16
TEL：86-13400023945

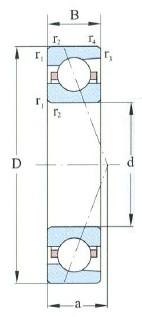

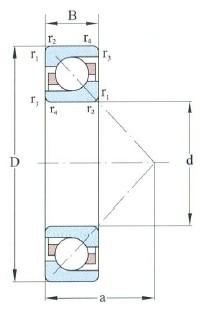

| Principal dimensions (mm) | |
| d | 30 |
| D | 62 |
| B | 16 |
| r 1,2 min | 1.0 |
| r 3,4 min | 0.60 |
| Load ratings (kN) | |
| Cr | 20.50 |
| Cor | 13.50 |
| Limiting Speed (r/min) | |
| Grease | 8500 |
| Oil | 12000 |
| Designation | |
| DB | 7206BTN/DB |
| DF | 7206BTN/DF |
| DT | 7206BTN/DT |
| Designation | 7206BTN |

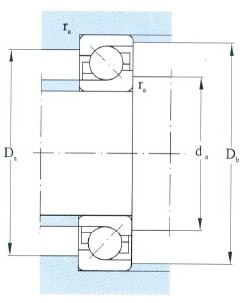

| Fitting dimansion mm | |
| d a min | 36 |
| D a max | 56 |
| D b max | |
| r a max | 1.0 |
| r b max | |
| Basic load ratings Combinaton (kn) | |
| Cr | 33.30 |
| Cor | 27.00 |
| Speed ratings Combination (r/min) | |
| Grease | 7000 |
| Oil | 9500 |
| a (mm) | |
| a (mm) | 27.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 0.2010 |
Chenxin International Industry Co., Ltdspecializes in selling 7206BTN-Angular Contact Ball Bearing，Relevant information of -7206BTN-Angular Contact Ball Bearing includes： Designation: 7206BTN d:30 D:62 B:16 Type:Angular Contact Ball Bearing ，Want to know more about 7206BTN-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
7206BTN-Angular Contact Ball Bearing is widely used.7206BTN-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 7206BTN-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
