Model：QJ322N2Q1
Old Model：
Type：Angular Contact Ball Bearing
d：110
D：240
B：50
TEL：86-13400023945

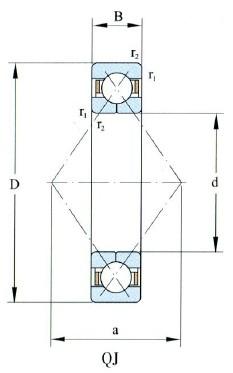

| Principal dimensions (mm) | |
| d | 110 |
| D | 240 |
| B | 50 |
| r 1,2 min | 3.0 |
| Load ratings (kN) | |
| Cr | 364.0 |
| Cor | 430.0 |
| Limiting Speed (r/min) | |
| Grease | 2000 |
| Oil | 3000 |
| Designation | |
| Designation | QJ322N2Q1 |

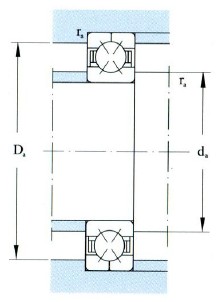

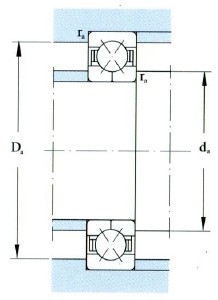

| Fitting dimansion mm | |
| d a max | 124 |
| D a max | 226 |
| r a max | 2.5 |
| a | |
| a | 123 |
| Weight(Kg) | |
| Designation | 12.50 |
Chenxin International Industry Co., Ltdspecializes in selling QJ322N2Q1-Angular Contact Ball Bearing，Relevant information of -QJ322N2Q1-Angular Contact Ball Bearing includes： Designation: QJ322N2Q1 d:110 D:240 B:50 Type:Angular Contact Ball Bearing ，Want to know more about QJ322N2Q1-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
QJ322N2Q1-Angular Contact Ball Bearing is widely used.QJ322N2Q1-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of QJ322N2Q1-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
