Model：7001C
Old Model：
Type：Angular Contact Ball Bearing
d：12
D：28
B：8
TEL：86-13400023945

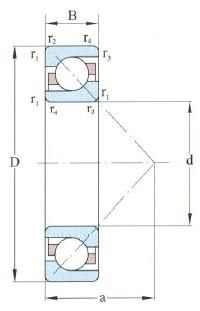

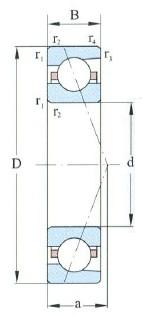

| Principal dimensions (mm) | |
| d | 12 |
| D | 28 |
| B | 8 |
| r 1,2 min | 0.3 |
| r 3,4 min | 0.15 |
| Load ratings (kN) | |
| Cr | 5.49 |
| Cor | 2.64 |
| Limiting Speed (r/min) | |
| Grease | 48000 |
| Oil | 63000 |
| Designation | |
| DB | 7001C/DB |
| DF | 7001C/DF |
| DT | 7001C/DT |
| Designation | 7001C |

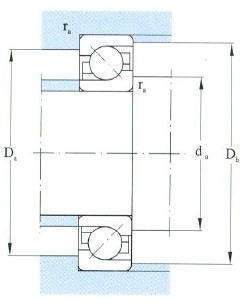

| Fitting dimansion mm | |
| d a min | 14 |
| D a max | 26 |
| D b max | 26.4 |
| r a max | 0.3 |
| r b max | 0.15 |
| Basic load ratings Combinaton (kn) | |
| Cr | 8.91 |
| Cor | 5.28 |
| Speed ratings Combination (r/min) | |
| Grease | 38000 |
| Oil | 50000 |
| a (mm) | |
| a (mm) | 7.0 |
| Wight(kg) Single Row | |
| Wight(kg) Single Row | 0.0200 |
Chenxin International Industry Co., Ltdspecializes in selling 7001C-Angular Contact Ball Bearing，Relevant information of -7001C-Angular Contact Ball Bearing includes： Designation: 7001C d:12 D:28 B:8 Type:Angular Contact Ball Bearing ，Want to know more about 7001C-Angular Contact Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
7001C-Angular Contact Ball Bearing is widely used.7001C-Angular Contact Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 7001C-Angular Contact Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
