Model：6415NR
Old Model：
Type：Deep Groove Ball Bearing
d：75
D：190
B：45
TEL：86-13400023945

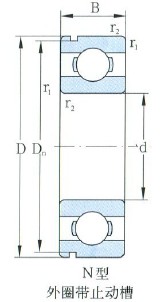

| Principal dimensions (mm) | |
| d | 75 |
| D | 190 |
| B | 45 |
| r 1,2 min | 3.0 |
| r s min | 0.5 |
| Load ratings (kN) | |
| Cr | 153.00 |
| Cor | 114.00 |
| Limiting Speed (r/min) | |
| Grease | 3600 |
| Oil | 4300 |

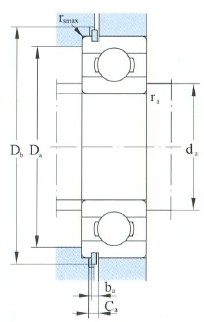

| Fitting dimansion mm | |
| d a min | 88.00 |
| D a max | 177.0 |
| D b min | 205 |
| b a min | 3.5 |
| C a max | 8.79 |
| r a max | 2.5 |
| Weight(Kg) | |
| Weight(Kg) | 6.7500 |
| Designation | |
| N | 6415N |
| NR | 6415NR |
| -ZN | 6415-ZN |
| -ZNR | 6415-ZNR |

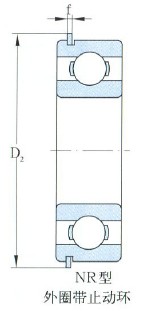

| Snap Ring(mm) | |
| No. | NR190 |
| D 2 max | 202.9 |
| f | 3.10 |
| Snap Groove(mm) | |
| D n max | 183.64 |
| b min | 3.50 |
| a max | 5.69 |
| r o max | 0.60 |
Chenxin International Industry Co., Ltdspecializes in selling 6415NR-Deep Groove Ball Bearing，Relevant information of -6415NR-Deep Groove Ball Bearing includes： Designation: 6415NR d:75 D:190 B:45 Type:Deep Groove Ball Bearing ，Want to know more about 6415NR-Deep Groove Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
6415NR-Deep Groove Ball Bearing is widely used.6415NR-Deep Groove Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 6415NR-Deep Groove Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
