Model：6200N
Old Model：
Type：Deep Groove Ball Bearing
d：10
D：30
B：9
TEL：86-13400023945
| Principal dimensions (mm) | |
| d | 10 |
| D | 30 |
| B | 9 |
| r 1,2 min | 0.6 |
| r s min | 0.5 |
| Load ratings (kN) | |
| Cr | 5.10 |
| Cor | 2.39 |
| Limiting Speed (r/min) | |
| Grease | 24000 |
| Oil | 30000 |

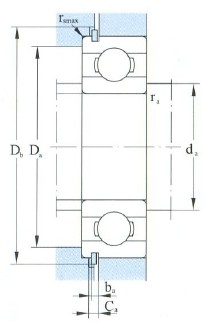

| Fitting dimansion mm | |
| d a min | 14.00 |
| D a max | 26.0 |
| D b min | 36 |
| b a min | 1.5 |
| C a max | 3.18 |
| r a max | 0.6 |
| Weight(Kg) | |
| Weight(Kg) | 0.0308 |
| Designation | |
| N | 6200N |
| NR | 6200NR |
| -ZN | 6200-ZN |
| -ZNR | 6200-ZNR |

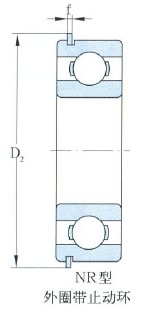

| Snap Ring(mm) | |
| No. | NR30 |
| D 2 max | 34.7 |
| f | 1.12 |
| Snap Groove(mm) | |
| D n max | 28.17 |
| b min | 1.35 |
| a max | 2.06 |
| r o max | 0.40 |
Chenxin International Industry Co., Ltdspecializes in selling 6200N-Deep Groove Ball Bearing，Relevant information of -6200N-Deep Groove Ball Bearing includes： Designation: 6200N d:10 D:30 B:9 Type:Deep Groove Ball Bearing ，Want to know more about 6200N-Deep Groove Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
6200N-Deep Groove Ball Bearing is widely used.6200N-Deep Groove Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of 6200N-Deep Groove Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
