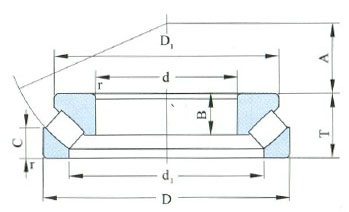

Drawing
Parameter
| Principal dimensions mm |
| d | 710 |
| D | 950 |
| T | 145 |
| Dimansion mm |
| d 1 | 805 |
| D 1 | 895 |
| B | 92 |
| C | 75 |
| A | 380 |
| r min | 6 |
| Basic load ratings kN |
| Ca | 3600 |
| Coa | 12000 |
| Limiting Speed rpm |
| Grease | |
| Oil | 240 |

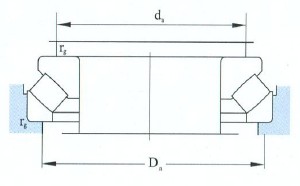

| Fitting dimansion mm |
| d a min | 820 |
| D a max | 880 |
| r g max | 5 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-90692710-Thrust Self-aligning Roller Bearing，Relevant information of FM-90692710-Thrust Self-aligning Roller Bearing includes： Designation: 90692710 d:710 D:950 B:145 Brand:FM Type:Thrust Self-aligning Roller Bearing ，Want to know more about FM-90692710-Thrust Self-aligning Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-90692710-Thrust Self-aligning Roller Bearing is widely used.FM-90692710-Thrust Self-aligning Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-90692710-Thrust Self-aligning Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
