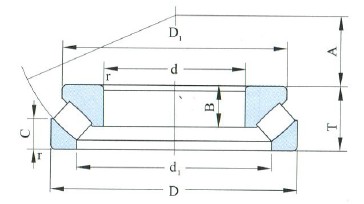

Drawing
Parameter
| Principal dimensions mm |
| d | 280 |
| D | 380 |
| T | 60 |
| Dimansion mm |
| d 1 | 322.5 |
| D 1 | 364 |
| B | 19 |
| C | 29.5 |
| A | 150 |
| r min | 2.1 |
| Basic load ratings kN |
| Ca | 895 |
| Coa | 2130 |
| Limiting Speed rpm |
| Grease | 700 |
| Oil | 1000 |

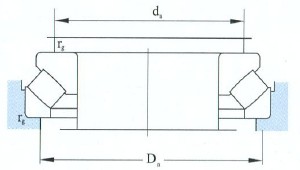

| Fitting dimansion mm |
| d a min | 325 |
| D a max | 347 |
| r g max | 2 |
| Designation |
| Old No. | 9039256 |
| New No. | 29256 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-29256-Thrust Self-aligning Roller Bearing，Relevant information of FM-29256-Thrust Self-aligning Roller Bearing includes： Designation: 29256 d:280 D:380 B:60 Brand:FM Type:Thrust Self-aligning Roller Bearing ，Want to know more about FM-29256-Thrust Self-aligning Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-29256-Thrust Self-aligning Roller Bearing is widely used.FM-29256-Thrust Self-aligning Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-29256-Thrust Self-aligning Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
