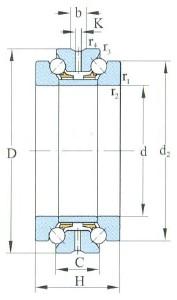

Drawing
Parameter
| Dimansion mm |
| d | 55 |
| D | 90 |
| H | 44 |
| r 1,2 min | 1.1 |
| r 3.4 min | 0.30 |
| Load ratings kN |
| Cr | 37.20 |
| Cor | 85.7 |
| Limiting Speed r/min |
| Grease | 4500 |
| Oil | 6000 |
| Dimansion mm |
| B | 11.0 |
| C | 22 |
| d 2 | 78.0 |
| K | 4.0 |
| b | 8 |

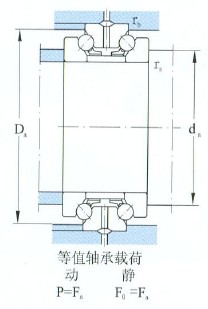

| Fitting dimansion mm |
| d a min | 68.0 |
| D a max | 85.0 |
| r a max | 1.0 |
| r b max | 0.30 |
| Designation |
| Designation | 234411BM1 |
| Weight(Kg) |
| Weight(kg) | 0.9490 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-234411BM1-Special machine tool bearing，Relevant information of FM-234411BM1-Special machine tool bearing includes： Designation: 234411BM1 d:55 D:90 B:44 Brand:FM Type:Special machine tool bearing ，Want to know more about FM-234411BM1-Special machine tool bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-234411BM1-Special machine tool bearing is widely used.FM-234411BM1-Special machine tool bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-234411BM1-Special machine tool bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
