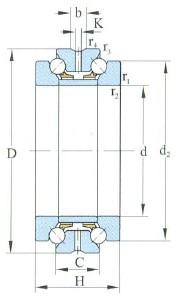

Drawing
Parameter
| Dimansion mm |
| d | 247 |
| D | 320 |
| H | 96 |
| r 1,2 min | 2.0 |
| r 3.4 min | 1.00 |
| Load ratings kN |
| Cr | 196.20 |
| Cor | 769.3 |
| Limiting Speed r/min |
| Grease | 1200 |
| Oil | 1600 |
| Dimansion mm |
| B | 24.0 |
| C | 48 |
| d 2 | 292.0 |
| K | 6.0 |
| b | 14 |

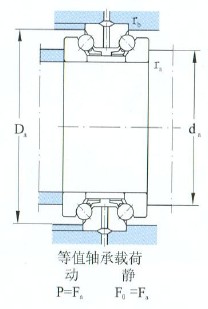

| Fitting dimansion mm |
| d a min | 271.0 |
| D a max | 310.0 |
| r a max | 2.0 |
| r b max | 1.00 |
| Designation |
| Designation | 234948X |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-234948X-Special machine tool bearing，Relevant information of FM-234948X-Special machine tool bearing includes： Designation: 234948X d:247 D:320 B:96 Brand:FM Type:Special machine tool bearing ，Want to know more about FM-234948X-Special machine tool bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-234948X-Special machine tool bearing is widely used.FM-234948X-Special machine tool bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-234948X-Special machine tool bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
