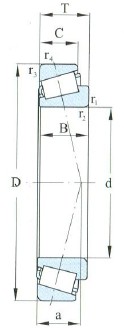

Drawing
Parameter
| Dimansion mm |
| d | |
| D | 310 |
| T | 91.00 |
| B | 86.0 |
| C | 71.0 |
| r 1,2 min | 5.0 |
| r 3,4 min | 4.0 |
| Load ratings kN |
| Cr | 946 |
| Cor | 1601 |
| Designation |
| Designation | 32234 |
| Weight(Kg) |
| Weight(Kg) | 28.5000 |
| Limiting Speed r/min |
| Grease | 1000 |
| Oil | 1500 |

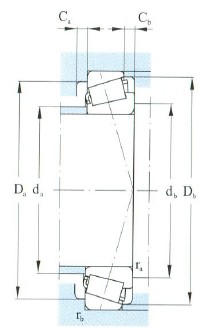

| Fitting dimansion mm |
| d a max | 196.0 |
| d b max | 188 |
| D a max | 292 |
| D a min | 259 |
| D b min | 294.0 |
| C a min | 10 |
| C b min | 20.0 |
| r a max | 3.0 |
| r b max | 3.0 |
| Calculation coefficient |
| e | 0.43 |
| Y | 1.40 |
| Yo | 0.800 |
| ISO355 Dimensions |
| ISO355 Dimensions | 4GD |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-32234-Tapered Roller Bearing，Relevant information of FM-32234-Tapered Roller Bearing includes： Designation: 32234 d: D:310 B:86.0 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-32234-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-32234-Tapered Roller Bearing is widely used.FM-32234-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-32234-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
