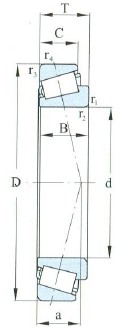

Drawing
Parameter
| Dimansion mm |
| d | 65 |
| D | 110 |
| T | 31 |
| B | 31 |
| C | 25 |
| r 1,2 min | 2.0 |
| r 3,4 min | 2.0 |
| Load ratings kN |
| Cr | 130 |
| Cor | 185 |
| Designation |
| Designation | F-7813E |
| Limiting Speed r/min |
| Grease | 3200 |
| Oil | 4300 |

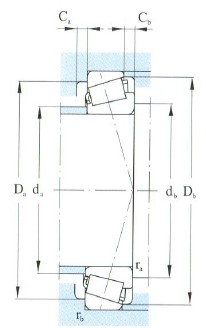

| Fitting dimansion mm |
| d a max | - |
| d b max | - |
| D a max | - |
| D a min | - |
| D b min | - |
| C a min | - |
| C b min | - |
| r a max | - |
| r b max | - |
| Calculation coefficient |
| e | 0.4 |
| Y | 1.49 |
| Yo | 0.82 |
| ISO355 Dimensions |
| ISO355 Dimensions | |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-F-7813E-Tapered Roller Bearing，Relevant information of FM-F-7813E-Tapered Roller Bearing includes： Designation: F-7813E d:65 D:110 B:31 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-F-7813E-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-F-7813E-Tapered Roller Bearing is widely used.FM-F-7813E-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-F-7813E-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
