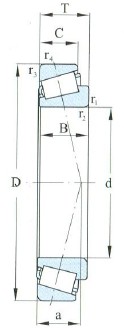

Drawing
Parameter
| Dimansion mm |
| d | 120 |
| D | 260 |
| T | 59.50 |
| B | 55.0 |
| C | 46.0 |
| r 1,2 min | 4.0 |
| r 3,4 min | 3.0 |
| Load ratings kN |
| Cr | 542 |
| Cor | 718 |
| Designation |
| Designation | 30324 |
| Weight(Kg) |
| Weight(Kg) | 14.0000 |
| Limiting Speed r/min |
| Grease | 1500 |
| Oil | 2000 |

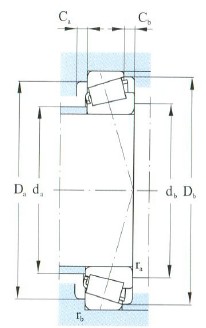

| Fitting dimansion mm |
| d a max | 153.0 |
| d b max | 134 |
| D a max | 246 |
| D a min | 221 |
| D b min | 237.0 |
| C a min | 7 |
| C b min | 13.5 |
| r a max | 2.5 |
| r b max | 2.5 |
| Calculation coefficient |
| e | 0.35 |
| Y | 1.70 |
| Yo | 0.900 |
| ISO355 Dimensions |
| ISO355 Dimensions | 2GB |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-30324-Tapered Roller Bearing，Relevant information of FM-30324-Tapered Roller Bearing includes： Designation: 30324 d:120 D:260 B:55.0 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-30324-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-30324-Tapered Roller Bearing is widely used.FM-30324-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-30324-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
