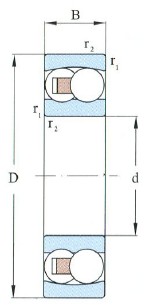

Drawing
Parameter
| Principal dimensions (mm) |
| d | 75 |
| D | 160 |
| B | 37 |
| r 1,2 min | 2.1 |
| Load ratings (kN) |
| Cr | 77.60 |
| Cor | 30.80 |
| Limiting Speed (r/min) |
| Grease | 3800 |
| Oil | 4500 |
| Designation |
| Cylindrical Bore | 1315A |
| Taper Bore | 1315AK |

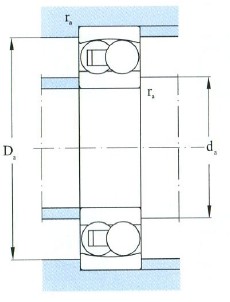

| Fitting dimansion mm |
| d a min | 86.0 |
| D a max | 149.0 |
| r a max | 2.0 |
| Calculation coefficient |
| e | 0.22 |
| Y 1 | 2.90 |
| Y 2 | 4.50 |
| Y 0 | 2.80 |
| Weight(Kg) |
| Weight(Kg) | 3.6000 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-1315AK-Self-aligning ball bearing，Relevant information of FM-1315AK-Self-aligning ball bearing includes： Designation: 1315AK d:75 D:160 B:37 Brand:FM Type:Self-aligning ball bearing ，Want to know more about FM-1315AK-Self-aligning ball bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-1315AK-Self-aligning ball bearing is widely used.FM-1315AK-Self-aligning ball bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-1315AK-Self-aligning ball bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
