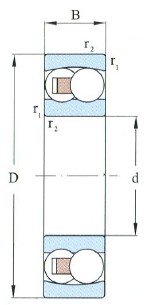

Drawing
Parameter
| Principal dimensions (mm) |
| d | 110 |
| D | 240 |
| B | 80 |
| r 1,2 min | 3.0 |
| Load ratings (kN) |
| Cr | 216.0 |
| Cor | 95.00 |
| Limiting Speed (r/min) |
| Grease | 2200 |
| Oil | 2800 |
| Designation |
| Cylindrical Bore | 2322A |
| Taper Bore | 2322AK |

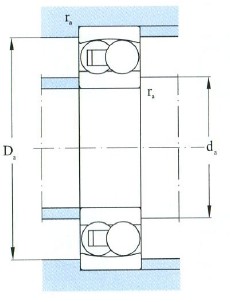

| Fitting dimansion mm |
| d a min | 123.0 |
| D a max | 227.0 |
| r a max | 2.5 |
| Calculation coefficient |
| e | 0.37 |
| Y 1 | 1.70 |
| Y 2 | 2.60 |
| Y 0 | 1.80 |
| Weight(Kg) |
| Weight(Kg) | 17.5000 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-2322AK-Self-aligning ball bearing，Relevant information of FM-2322AK-Self-aligning ball bearing includes： Designation: 2322AK d:110 D:240 B:80 Brand:FM Type:Self-aligning ball bearing ，Want to know more about FM-2322AK-Self-aligning ball bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-2322AK-Self-aligning ball bearing is widely used.FM-2322AK-Self-aligning ball bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-2322AK-Self-aligning ball bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
