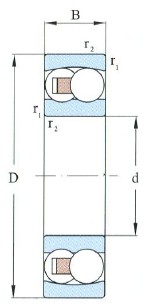

Drawing
Parameter
| Principal dimensions (mm) |
| d | 25 |
| D | 52 |
| B | 15 |
| r 1,2 min | 1.0 |
| Load ratings (kN) |
| Cr | 14.30 |
| Cor | 4.00 |
| Limiting Speed (r/min) |
| Grease | 13000 |
| Oil | 16000 |
| Designation |
| Cylindrical Bore | 1205ATN |
| Taper Bore | 1205AKTN |

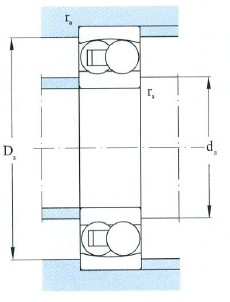

| Fitting dimansion mm |
| d a min | 30.0 |
| D a max | 47.0 |
| r a max | 1.0 |
| Calculation coefficient |
| e | 0.28 |
| Y 1 | 2.20 |
| Y 2 | 3.50 |
| Y 0 | 2.50 |
| Weight(Kg) |
| Weight(Kg) | 0.1390 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-1205AKTN-Self-aligning ball bearing，Relevant information of FM-1205AKTN-Self-aligning ball bearing includes： Designation: 1205AKTN d:25 D:52 B:15 Brand:FM Type:Self-aligning ball bearing ，Want to know more about FM-1205AKTN-Self-aligning ball bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-1205AKTN-Self-aligning ball bearing is widely used.FM-1205AKTN-Self-aligning ball bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-1205AKTN-Self-aligning ball bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
