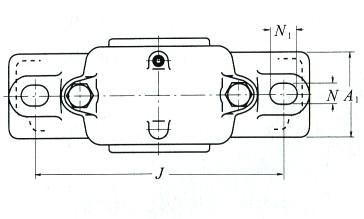

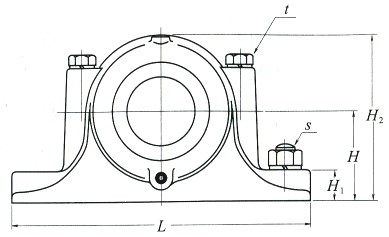

Drawing
Parameter
| Dimensions (mm) |
| D H8 | 62 |
| H h13 | 50 |
| J | 150 |
| N | 15 |
| N 1 | 20 |
| A | 77 |
| L | 185 |
| A 1 | 52 |
| H 1 | 22 |
| H 2 | 90 |
| g H13 | 30 |
| t | M8 |
| s | M12 |
| Sphercial ball bearing |
| Designation | 1206K |
| Rated dynamic load Cr (N) | 15800 |
| Sphercial roller bearing |
| Designation | - |
| Rated dynamic load Cr (N) | - |
| Locating ring |
| Specification (OD × width) | SR62×7 |
| Oil seal(3) |
| Oil seal(3) | GS6 |
| Adpater sleeves |
| Designation | H206X |
Details
Chenxin International Industry Co., Ltdspecializes in selling NSK-SN506-Aligning Bearing with plummer block housing，Relevant information of NSK-SN506-Aligning Bearing with plummer block housing includes： Designation: SN506 d:25 D: B: Brand:NSK Type:Aligning Bearing with plummer block housing ，Want to know more about NSK-SN506-Aligning Bearing with plummer block housing You can consult online or call the hotline, we will provide you with detailed service.
NSK-SN506-Aligning Bearing with plummer block housing is widely used.NSK-SN506-Aligning Bearing with plummer block housing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of NSK-SN506-Aligning Bearing with plummer block housing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
