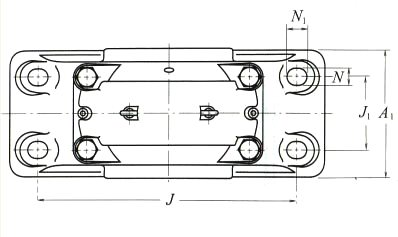

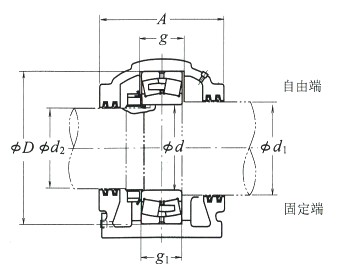

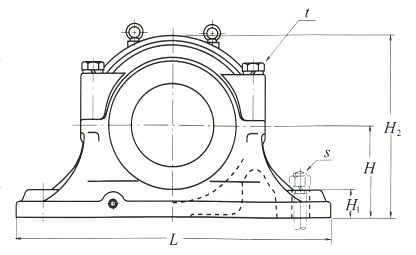

Drawing
Parameter
| Dimensions (mm) |
| d 1 | 200 |
| d 2 | 170 |
| D H8 | 320 |
| H h13 | 190 |
| J | 540 |
| N | 36 |
| N 1 | 46 |
| A | 280 |
| L | 650 |
| A 1 | 260 |
| H 1 | 60 |
| H 2 | 380 |
| J 1 | 150 |
| g H13 | 96 |
| g 1 H13 | 86 |
| t | M24 |
| s | M30 |
| Sphercial roller bearing |
| Designation | 22236CD |
| Rated dynamic load Cr (N) | 1020000 |
| No.(1) |
| Free ends | SD236C |
| Fixed ends | SD236CG |
| Oil seal(2) |
| d 1 end | GS44 |
| d 2 end | GS38 |
| Washer or a snap washer |
| Designation | AW36 |
Details
Chenxin International Industry Co., Ltdspecializes in selling NSK-SD236C-Aligning Bearing with plummer block housing，Relevant information of NSK-SD236C-Aligning Bearing with plummer block housing includes： Designation: SD236C d:180 D: B: Brand:NSK Type:Aligning Bearing with plummer block housing ，Want to know more about NSK-SD236C-Aligning Bearing with plummer block housing You can consult online or call the hotline, we will provide you with detailed service.
NSK-SD236C-Aligning Bearing with plummer block housing is widely used.NSK-SD236C-Aligning Bearing with plummer block housing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of NSK-SD236C-Aligning Bearing with plummer block housing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
