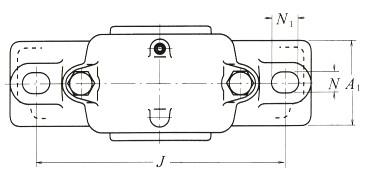

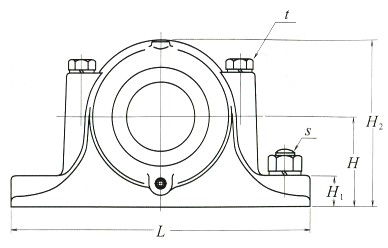

Drawing
Parameter
| Dimensions (mm) |
| d 1 | 180 |
| d 2 | 150 |
| D H8 | 340 |
| H h13 | 200 |
| J | 580 |
| N | 42 |
| N 1 | 50 |
| A | 255 |
| L | 680 |
| A 1 | 190 |
| H 1 | 70 |
| H 2 | 405 |
| g H13 | 124 |
| t | M30 |
| s | M36 |
| Sphercial ball bearing |
| Designation | - |
| Rated dynamic load Cr (N) | - |
| Sphercial roller bearing |
| Designation | 22332CA |
| Rated dynamic load Cr (N) | 1360000 |
| Locating ring |
| Specification (OD × width) | SR340×10 |
| pcs | 1 |
| Oil seal(3) |
| d 1 end | GS40 |
| d 2 end | GS34 |
Details
Chenxin International Industry Co., Ltdspecializes in selling NSK-SN332C-Aligning Bearing with plummer block housing，Relevant information of NSK-SN332C-Aligning Bearing with plummer block housing includes： Designation: SN332C d:160 D: B: Brand:NSK Type:Aligning Bearing with plummer block housing ，Want to know more about NSK-SN332C-Aligning Bearing with plummer block housing You can consult online or call the hotline, we will provide you with detailed service.
NSK-SN332C-Aligning Bearing with plummer block housing is widely used.NSK-SN332C-Aligning Bearing with plummer block housing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of NSK-SN332C-Aligning Bearing with plummer block housing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
