Drawing
Parameter
| Boundary dimensions |
| d | 20 |
| D | 47 |
| B,C,T | 14 |
| r Min | 1 |
| r 1 (Min) | 0.6 |
| Rated load (N) |
| Cr | 11000 |
| Cor | 2380 |
| Rated load {kgf} |
| Cr | 1120 |
| Cor | 243 |
| Speed ratings(rpm) |
| Grease | 14000 |
| Oil | 17000 |
| Bearing No. |
| E series | L20 |
| EN series | - |

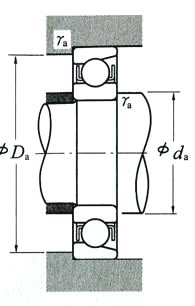

| Fitting dimensions (mm) |
| d a (Min) | 25 |
| Da (Max) | 42 |
| r a (Max) | 1 |
Details
Chenxin International Industry Co., Ltdspecializes in selling NSK-L20-Deep Groove Ball Bearing，Relevant information of NSK-L20-Deep Groove Ball Bearing includes： Designation: L20 d:20 D:47 B:14 Brand:NSK Type:Deep Groove Ball Bearing ，Want to know more about NSK-L20-Deep Groove Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
NSK-L20-Deep Groove Ball Bearing is widely used.NSK-L20-Deep Groove Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of NSK-L20-Deep Groove Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
