Details

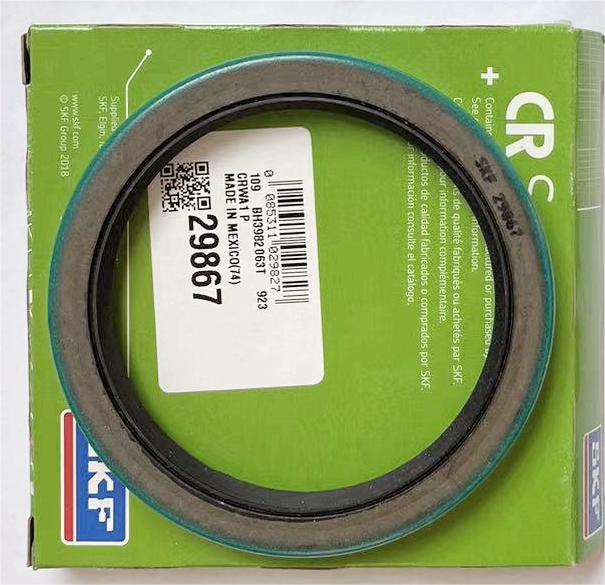

SKF oil seal 29867
| Type of outside diameter |
Metal-cased with sealant coating on the outside diameter
|
| Lip material |
Polyacrylate elastomer (ACM)
|
| Seal design |
CRWA1
|
Dimensions
| d1 |
76.2 mm
|
Shaft diameter |
|---|---|---|
| D |
95.275 mm
|
Housing bore diameter |
| b |
9.53 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min.-40 °C
|
| Operating temperature |
max.150 °C
|
| Circumferential speed |
max.17.69 m/s
|
| Rotational speed |
max.4 440 r/min
|
| Pressure differential |
0.07 N/mm²
|
