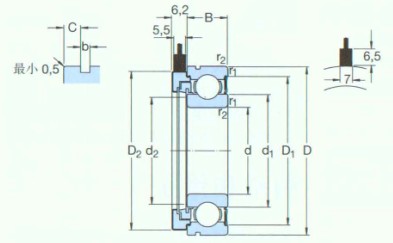

Drawing
Parameter
| Basic Dimensions |
| d | 20 |
| D | 47 |
| B | 14 |
| Basic load ratings KN |
| dyc Cr | 13.5 |
| stc Cor | 6.55 |
| Sensor |
| Pulses No. | 48 |
| Periodicity accuracy | ±3 |
| Phase shifting accuracy | 90±30 |
| Dimansion |
| d | 20 |
| d 1 ≈ | 28.5 |
| d 2 | 26.4 |
| D 1 ≈ | 40.6 |
| D 2 | 46.4 |
| b | 1.35 |
| C | 2.06 |
| Abutment and fillet dimensions mm |
| r 1,2 Min | 1 |
| d a Min | 25 |
| d b Min | 25 |
| d b Max | 26.3 |
| D a Max | 42 |
| Radial clearance |
| r a Max | 1 |
| Min | 13 |
| Max | 28 |
| Limiting Speed |
| Limiting Speed | 10000 |
| Designation |
| Designation | BMB-6204/048S2/EA002A |
Details
Chenxin International Industry Co., Ltdspecializes in selling SKF-BMB-6204/048S2/EA002A-Sensor Bearing Units，Relevant information of SKF-BMB-6204/048S2/EA002A-Sensor Bearing Units includes： Designation: BMB-6204/048S2/EA002A d:20 D:47 B:14 Brand:SKF Type:Sensor Bearing Units ，Want to know more about SKF-BMB-6204/048S2/EA002A-Sensor Bearing Units You can consult online or call the hotline, we will provide you with detailed service.
SKF-BMB-6204/048S2/EA002A-Sensor Bearing Units is widely used.SKF-BMB-6204/048S2/EA002A-Sensor Bearing Units is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-BMB-6204/048S2/EA002A-Sensor Bearing Units sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
