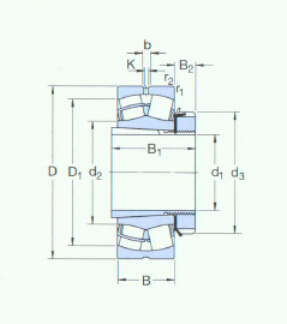

Drawing
Parameter
| Principal dimensions mm |
| d | 280 |
| D | 500 |
| B | 160 |
| Basic load ratings KN |
| dyc Cr | 3200 |
| stc Cor | 5100 |
| Speed ratings rpm |
| Speed Ratings | 950 |
| Limiting Speed | 1200 |
| Designation |
| Bearing | *23160CCK/W33 |
| Adapter Sleeve | OH3160H |
| Dimansion mm |
| d 1 | 280 |
| d 2 ～ | 345 |
| d 3 | 380 |
| D1 ～ | 434 |
| B 1 | 208 |
| B 2 | 40 |
| B 3 | 53 |
| b | 16.7 |
| k | 9 |
| r 1,2 Min | 5 |
| Abutment and fillet dimensions mm |
| d a Max | 345 |
| d b Min | 318 |
| Da Max | 480 |
| B a Min | 12 |
| r a Max | 4 |
| Calculation coefficient |
| e | 0.3 |
| Y1 | 2.3 |
| Y2 | 3.4 |
| Yo | 2.2 |
| Bearing+ Adapter Sleeve |
| WeightBearing+Adapter Sleeve | 150 |
Details
Chenxin International Industry Co., Ltdspecializes in selling SKF-*23160CCK/W33-Spherical Roller Bearing，Relevant information of SKF-*23160CCK/W33-Spherical Roller Bearing includes： Designation: *23160CCK/W33 d:280 D:500 B:160 Brand:SKF Type:Spherical Roller Bearing ，Want to know more about SKF-*23160CCK/W33-Spherical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
SKF-*23160CCK/W33-Spherical Roller Bearing is widely used.SKF-*23160CCK/W33-Spherical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-*23160CCK/W33-Spherical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
