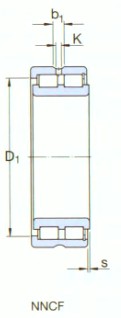

Drawing
Parameter
| Principal dimensions mm |
| d | 360 |
| D | 540 |
| B | 243 |
| Basic load ratings KN |
| dyc Cr | 4460 |
| stc Cor | 8650 |
| Speed ratings rpm |
| Speed Ratings | 500 |
| Limiting Speed | 630 |
| Dimansion mm |
| d | 360 |
| d 1 ～ | 412 |
| D1 ～ | 486 |
| E | 503 |
| b 1 | 9.4 |
| k | 5 |
| r 1,2 Min | 5 |
| s 1) | 11 |
| Abutment and fillet dimensions mm |
| d a Min | 383 |
| d as 2) recommended value | 402 |
| Da Max | 517 |
| r a Max | 4 |
| Designation |
| Designation | NNCF5072CV |
Details
Chenxin International Industry Co., Ltdspecializes in selling SKF-NNCF5072CV-Cylindrical Roller Bearing，Relevant information of SKF-NNCF5072CV-Cylindrical Roller Bearing includes： Designation: NNCF5072CV d:360 D:540 B:243 Brand:SKF Type:Cylindrical Roller Bearing ，Want to know more about SKF-NNCF5072CV-Cylindrical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
SKF-NNCF5072CV-Cylindrical Roller Bearing is widely used.SKF-NNCF5072CV-Cylindrical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-NNCF5072CV-Cylindrical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
