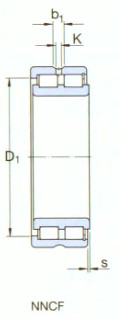

Drawing
Parameter
| Principal dimensions mm |
| d | 280 |
| D | 350 |
| B | 69 |
| Basic load ratings KN |
| dyc Cr | 737 |
| stc Cor | 1860 |
| Speed ratings rpm |
| Speed Ratings | 750 |
| Limiting Speed | 950 |
| Dimansion mm |
| d | 280 |
| d 1 ～ | 309 |
| D1 ～ | - |
| E | 332.4 |
| b 1 | 8 |
| k | 4 |
| r 1,2 Min | 2 |
| s 1) | 4 |
| Abutment and fillet dimensions mm |
| d a Min | 290 |
| d as 2) recommended value | - |
| Da Max | 340 |
| r a Max | 2 |
| Designation |
| Designation | NNCL4856CV |
Details
Chenxin International Industry Co., Ltdspecializes in selling SKF-NNCL4856CV-Cylindrical Roller Bearing，Relevant information of SKF-NNCL4856CV-Cylindrical Roller Bearing includes： Designation: NNCL4856CV d:280 D:350 B:69 Brand:SKF Type:Cylindrical Roller Bearing ，Want to know more about SKF-NNCL4856CV-Cylindrical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
SKF-NNCL4856CV-Cylindrical Roller Bearing is widely used.SKF-NNCL4856CV-Cylindrical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-NNCL4856CV-Cylindrical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
