Drawing
Parameter
| Dimansion mm |
| d | 50 |
| d1 ～ | 62.5 |
| D1 ～ | 77.4 |
| D3 | 86.79 |
| D4 | 96.5 |
| b | 2.7 |
| f | 2.46 |
| C | 3.28 |
| r 1,2 Min | 1.1 |
| r 0 Max | 0.6 |
| Basic load ratings KN |
| dyc Cr | 37.1 |
| stc Cor | 23.2 |
| Designation |
| Bearing with snap groove | *6210N |
| snap groove and snap ring | *6210NR |
| snap ring | SP90 |
| Principal dimensions mm |
| d | 50 |
| D | 90 |
| B | 20 |
| Speed ratings rpm |
| Speed Ratings | 15000 |
| Limiting Speed 1) | 10000 |

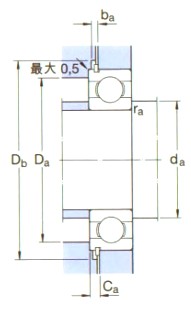

| Abutment and fillet dimensions mm |
| d a Min | 57 |
| Da Max | 83 |
| D b Min | 98 |
| b a Min | 3 |
| Ca Max | 5.74 |
| r a Max | 1 |
| Calculation coefficient |
| k r | 0.025 |
| fo | 14 |
Details
Chenxin International Industry Co., Ltdspecializes in selling SKF-SP90-Deep Groove Ball Bearing，Relevant information of SKF-SP90-Deep Groove Ball Bearing includes： Designation: SP90 d:55 D:90 B:18 Brand:SKF Type:Deep Groove Ball Bearing ，Want to know more about SKF-SP90-Deep Groove Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
SKF-SP90-Deep Groove Ball Bearing is widely used.SKF-SP90-Deep Groove Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of SKF-SP90-Deep Groove Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
