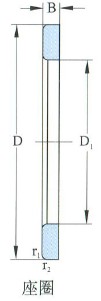

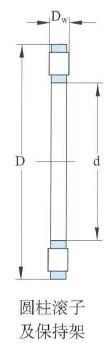

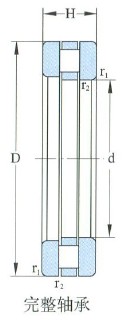

Drawing
Parameter
| Principal dimensions mm |
| d | 440 |
| D | 600 |
| T | 130 |
| Dimansion mm |
| d 1 | 595 |
| D 1 | 445 |
| D w | 52 |
| B | 39 |
| r 1,2min | 5 |
| Basic load ratings kN |
| Cr | 2900 |
| Cor | 14600 |
| Limiting Speed rpm |
| Grease | 160 |
| Oil | 220 |
| Designation |
| Complete Bearing | 81288 |
| Rollers and Cages | K81288 |
| Shaft Washer | WS81288 |
| Housing Washer | GS81288 |
| Fitting dimansion mm |
| d amin | 591 |
| D amax | 479 |
| r amax | 4 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-81288-Thrust Cylindrical Roller Bearing，Relevant information of FM-81288-Thrust Cylindrical Roller Bearing includes： Designation: 81288 d:440 D:600 B:130 Brand:FM Type:Thrust Cylindrical Roller Bearing ，Want to know more about FM-81288-Thrust Cylindrical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-81288-Thrust Cylindrical Roller Bearing is widely used.FM-81288-Thrust Cylindrical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-81288-Thrust Cylindrical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
