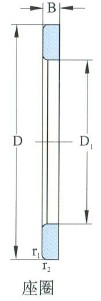

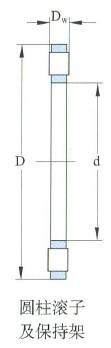

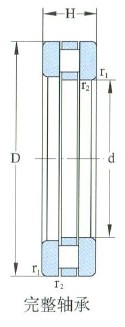

Drawing
Parameter
| Principal dimensions mm |
| d | 300 |
| D | 380 |
| T | 62 |
| Dimansion mm |
| d 1 | 376 |
| D 1 | 304 |
| D w | 25 |
| B | 18.5 |
| r 1,2min | 2 |
| Basic load ratings kN |
| Cr | 850 |
| Cor | 4400 |
| Limiting Speed rpm |
| Grease | 320 |
| Oil | 430 |
| Designation |
| Complete Bearing | 81160 |
| Rollers and Cages | K81160 |
| Shaft Washer | WS81160 |
| Housing Washer | GS81160 |
| Fitting dimansion mm |
| d amin | 373 |
| D amax | 315 |
| r amax | 2 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-WS81160-Thrust Cylindrical Roller Bearing，Relevant information of FM-WS81160-Thrust Cylindrical Roller Bearing includes： Designation: WS81160 d:300 D:380 B:62 Brand:FM Type:Thrust Cylindrical Roller Bearing ，Want to know more about FM-WS81160-Thrust Cylindrical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-WS81160-Thrust Cylindrical Roller Bearing is widely used.FM-WS81160-Thrust Cylindrical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-WS81160-Thrust Cylindrical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
