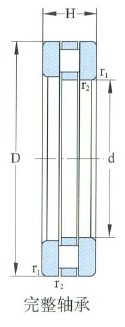

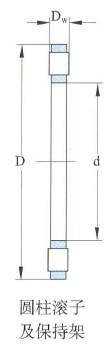

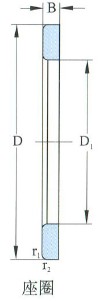

Drawing
Parameter
| Principal dimensions mm |
| d | 85 |
| D | 110 |
| T | 19 |
| Dimansion mm |
| d 1 | 110 |
| D 1 | 87 |
| D w | 7.5 |
| B | 5.75 |
| r 1,2min | 1 |
| Basic load ratings kN |
| Cr | 76.5 |
| Cor | 310 |
| Limiting Speed rpm |
| Grease | 1000 |
| Oil | 1500 |
| Designation |
| Complete Bearing | 81117 |
| Rollers and Cages | K81117 |
| Shaft Washer | WS81117 |
| Housing Washer | GS81117 |
| Fitting dimansion mm |
| d amin | 108 |
| D amax | 87 |
| r amax | 1 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-WS81117-Thrust Cylindrical Roller Bearing，Relevant information of FM-WS81117-Thrust Cylindrical Roller Bearing includes： Designation: WS81117 d:85 D:110 B:19 Brand:FM Type:Thrust Cylindrical Roller Bearing ，Want to know more about FM-WS81117-Thrust Cylindrical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-WS81117-Thrust Cylindrical Roller Bearing is widely used.FM-WS81117-Thrust Cylindrical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-WS81117-Thrust Cylindrical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
