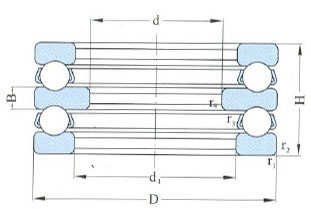

Drawing
Parameter
| Dimansion mm |
| d | 40 |
| d 1 min | 52 |
| D | 110 |
| H | 78 |
| B | 18 |
| r 1,2 min | 1.5 |
| r 3.4 min | 0.6 |
| Load ratings kN |
| Cr | 159.0 |
| Cor | 310.0 |
| Limiting Speed r/min |
| Grease | 1400 |
| Oil | 2000 |

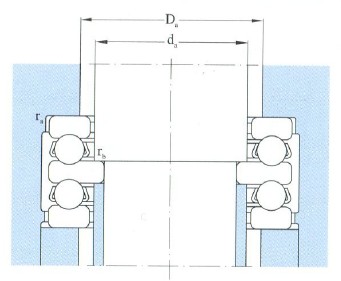

| Fitting dimansion mm |
| d a min | 50 |
| D a max | 80 |
| r a max | 1.5 |
| r b max | 0.6 |
| Designation |
| Designation | 52410 |
| Weight(kg) plane-type |
| Weight(kg) plane-type | 3.5100 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-52410-Thrust Ball Bearing，Relevant information of FM-52410-Thrust Ball Bearing includes： Designation: 52410 d:40 D:110 B:18 Brand:FM Type:Thrust Ball Bearing ，Want to know more about FM-52410-Thrust Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-52410-Thrust Ball Bearing is widely used.FM-52410-Thrust Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-52410-Thrust Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
