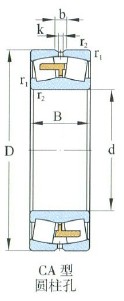

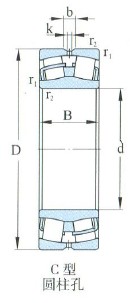

Drawing
Parameter
| Dimansion mm |
| d | 150 |
| D | 270 |
| B | 96.0 |
| b | 11.1 |
| k | 6 |
| r 1,2 | 3.0 |
| Load ratings kN |
| Cr | 937.0 |
| Cor | 1460.0 |
| Limiting Speed r/min |
| Grease | 1100 |
| Oil | 1500 |
| Designation |
| Cylindrical Bore | 23230CA/W33 |
| Taper Bore | 23230CAK/W33 |
| Fitting dimansion mm |
| d a max | 164 |
| D a max | 256 |
| r a max | 2.5 |
| Weight(kg) (Taper Bore) |
| Weight(kg) (Taper Bore) | 26.6 |
Details
Chenxin International Industry Co., Ltdspecializes in selling FM-23230CAK/W33-Spherical Roller Bearing，Relevant information of FM-23230CAK/W33-Spherical Roller Bearing includes： Designation: 23230CAK/W33 d:150 D:270 B:96.0 Brand:FM Type:Spherical Roller Bearing ，Want to know more about FM-23230CAK/W33-Spherical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-23230CAK/W33-Spherical Roller Bearing is widely used.FM-23230CAK/W33-Spherical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-23230CAK/W33-Spherical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
